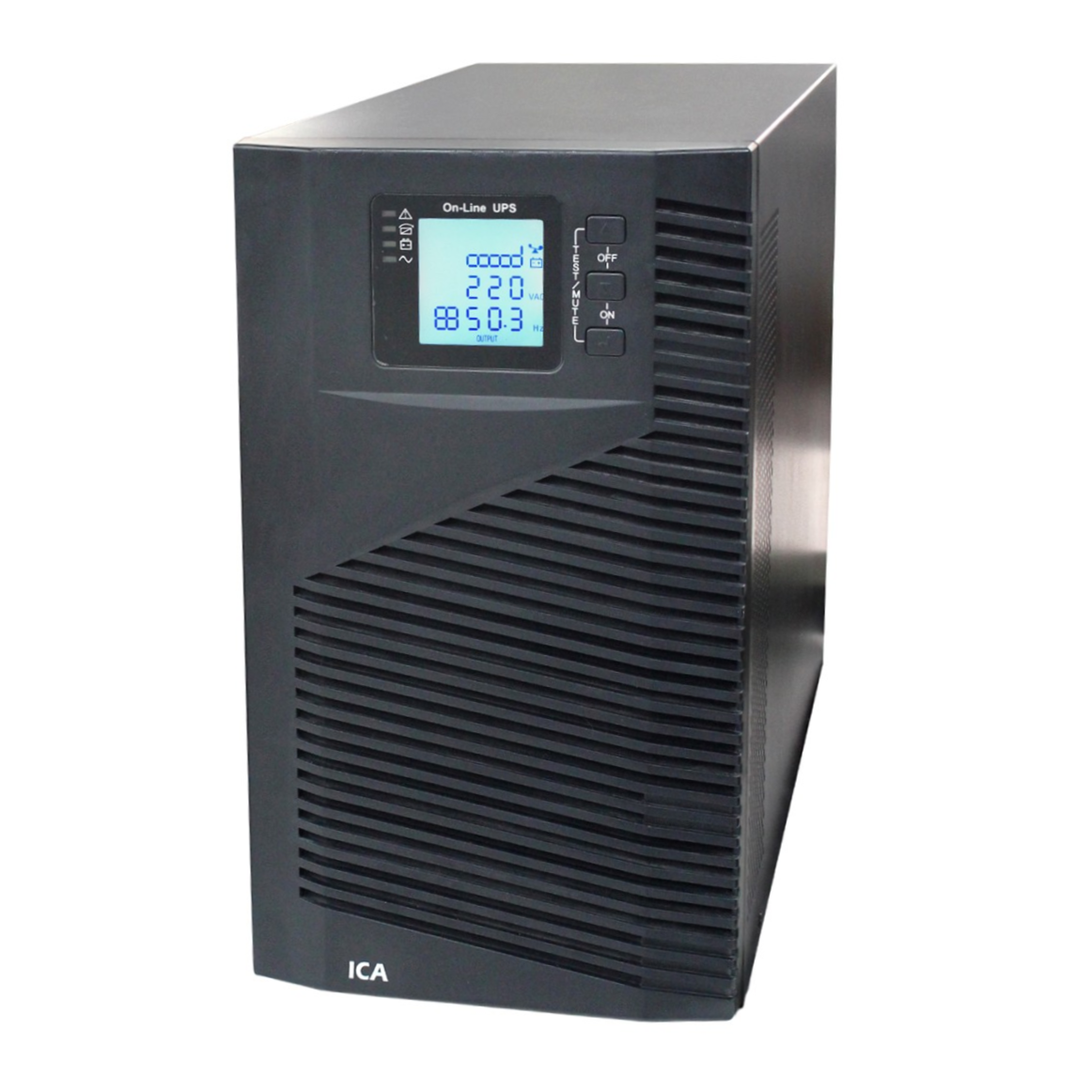

Model : UPS SE3100 Capacity : 3000 VA / 2700 W AC Input Voltage : 110 – 290 V (1 Phase) AC Input Frequency : 45 – 65 Hz AC Input Protection : 16 A DC Input Voltage : 96 V DC Input Internal Battery : 8 x 12 V, 9 Ah DC Input Protection : Fuse Charger Topology : SWITCHING REGULATION Charger Floating Voltage : 108.8 V Inverter Output Waveform : SINEWAVE Inverter Output Distorsion : <3% THD Inverter Output Topology : Online Double Conversion Inverter Output Voltage : 220 ± 1% V Inverter Output Frequency : 50 ± 1 % Hz Inverter Output Efficiency : ≥ 90 % Transfer Time When AC Input Loss : 0 ms Static Transfer Switch : 2 ms Back Up Time : 10 min Overload : Load ≤110%: last 60min, ≤125%: last 10min, ≤150%: last 1min, ≥150% change to bypass Communication : USB, RS232, RS485, Parallel port, REPO port, Coupler dry contact, Intelligent slot, SNMP card (optional), Relay card (optional) Operation Temperature : 0 – 40°C Standards : IEC/EN62040-1, IEC/EN60950-1, IEC62040-3, IEC/EN62040-2, IEC61000-4-2, IEC61000-4-3, IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-8 Dimension(DxWxH) : 475 x 195 x 330 mm Weight Netto : 31.0 Kg Weight Gross : 33.0 Kg
